Product Overview

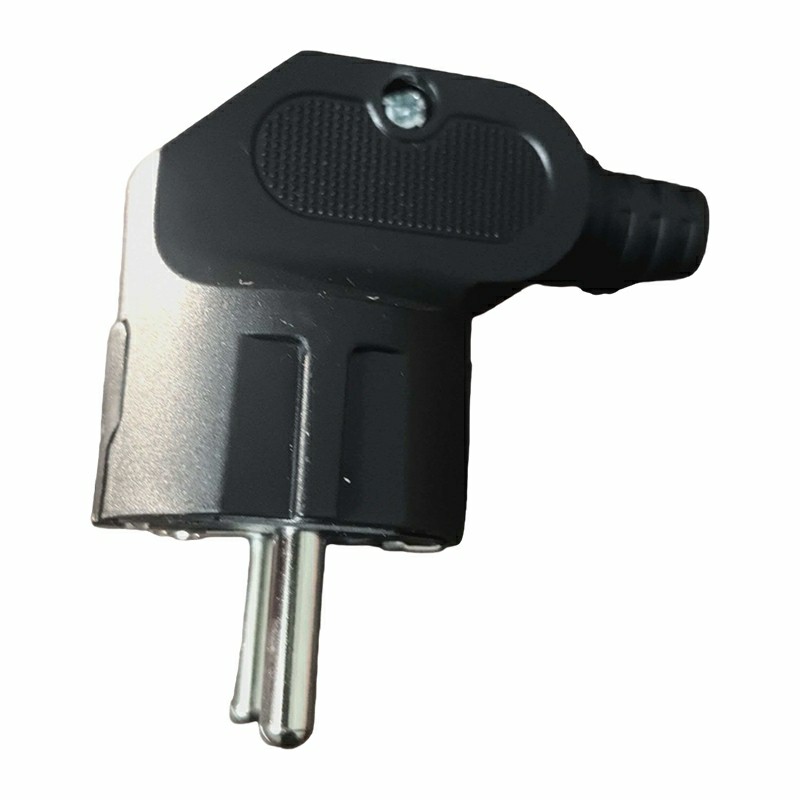

Type F Plug 16A is a grounded power plug for German/French European-standard markets. It is designed for kitchen appliances, power tools, medium- to high-load household appliances, and power cord assembly orders requiring stronger safety structure and stable grounding under a 16A, 220–250V rated scope.
Specifications
|
Item |
Parameter |
|
Product Name |
Type F Plug 16A |
|
Plug Type |
Type F, German/French European grounded plug |
|
Rated Current |
16A |
|
Rated Voltage |
220–250V |
|
Applicable Standard Scope |
DIN VDE 0620-1, CE / EU safety requirements related requirements |
|
Housing Material |
Flame-retardant PC / ABS |
|
Conductive Parts |
Brass or copper-alloy pins |
|
Grounding Structure |
Dual-side grounding clips |
|
Common Colors |
Black, white, or customized colors |
|
Applicable Products |
Kitchen appliances, power tools, medium- and high-load household appliances, power cord assembly |
Key Advantages
- The 16A grounded structure is suitable for medium- and high-load appliance power supply.
- Pin position, grounding clip elasticity, and terminal continuity are controlled together to reduce contact failure risk in batch assembly.
- The flame-retardant housing provides better heat resistance and insulation for high-frequency usage scenarios.
- The housing structure supports comfortable grip and stable insertion for channel orders with consistent appearance and grounding versions.
Materials and Construction
The housing uses flame-retardant PC / ABS and is designed around heat resistance, insulation, and mechanical strength. Conductive parts use brass or copper alloy, with optional nickel-plated pins. The side grounding clips and internal terminals must maintain elasticity, continuity, and position consistency after assembly, with additional checks for housing locking, cable crimping, and grounding continuity.
Customization Options
Customization supports housing color, Logo, pin surface treatment, cable assembly version, packaging labels, and channel packaging. OEM / ODM orders can provide target market, load scope, cable specification, brand mark, packaging files, and order quantity.
Quality Control
Type F Plug 16A is produced and inspected according to CE / EU safety requirements and DIN VDE 0620-1 grounded plug structure requirements. Checks include pin diameter and spacing, grounding clip elasticity and position, rated current and voltage fit, terminal crimping, conductive contact, housing flame-retardant and heat-resistant performance, insulation clearance, insertion stability, and assembly gap.
Frequently Asked Questions
Q: What information is needed to quote Type F Plug 16A?
-
A: Please provide target market, rated load, cable specification, color, Logo/packaging requirements, and estimated purchase quantity.
Q: Can samples be arranged before mass production?
-
A: Yes. Samples can be used to confirm insertion feel, grounding clip contact, terminal crimping, continuity stability, housing appearance, and assembly matching before mass production.
Q: What is the MOQ for Type F Plug 16A?
-
A: MOQ is confirmed according to the product version, material, tooling status, packaging method, and order quantity. No fixed MOQ is added unless it is confirmed in the order documents.
Q: How is the lead time arranged?
-
A: Regular orders take about 15–30 days. Orders involving Logo, color, cable, or packaging customization usually take about 15–45 days.
Q: How is the product packed for shipment?
-
A: Models, grounding structure, color, and packaging labels are checked before shipment to ensure version consistency.
